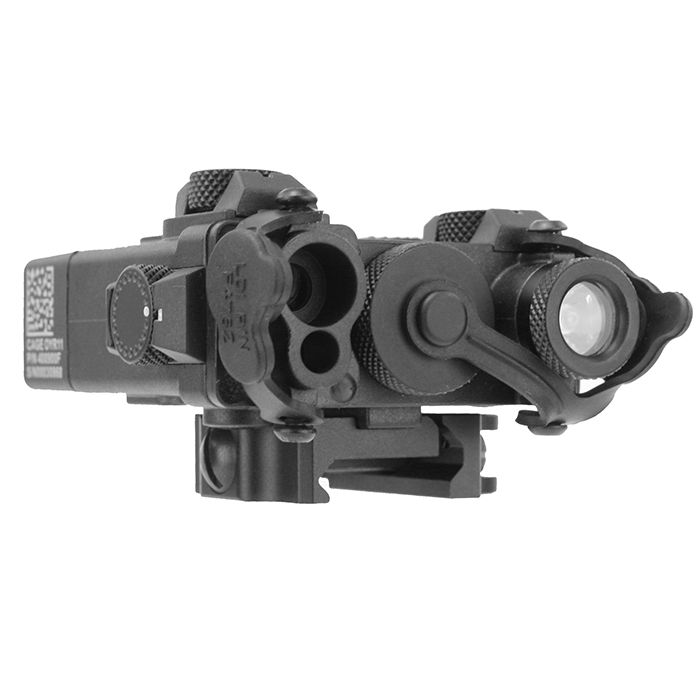

Flashlight/Laser Element DBAL-A2 Aiming Device

The Element DBAL-A2 Aiming Device is a flashlight/laser variant of a professional aiming device. In airsoft, these often are just dummy’s, but in this case, you’ll get an actual working and very effective laser, infrared laser and bright flashlight. It’s an extremely usable device with lots of functions and the lasers can even be zeroed in by means of adjustable elevation and windage (30 cm adjustment range at 10 metres). There’s even an open sight attachment you can use

On the rear of the Element DBAL-A2 Aiming Device a mode selection knob and function selection knob are featured. With these, you can choose which function and in which intensity is activated when you push the on/off button or use the included remote switch that you can attach to the grip or handguard of your replica.

MODE SELECTION

• ON LO PWR: constantly on with low intensity

• MOM LO PWR: temporarily on with low intensity as long as switch is pushed in

• OFF: all functions completely off

• MOM HI PWR: constantly on with high intensity
• ON HI PWR: temporarily on with high intensity as long as switch is pushed in

FUNCTION SELECTION

• VIS POINT: blue laser

• I/R ILLUM: bright white LED flashlight

• I/R POINT & ILLUM: bright white LED stroboscope
• I/R POINT: infrared laser

The high intensity functions can only be used after removing a blocking screw for which an Allen key is included. They will work for both flashlight and lasers, in which the LED light will increase in intensity from 42 to 160 lumens and both lasers will strongly increase in intensity, giving an effective range of up to 125 metres.

Mounting the Element DBAL-A2 Aiming Device is done simple and fast with a quick detach Weaver/Picatinny mounting system.

Please note: The laser is classed as a type 3A laser. The laser's intensity amounts to 1 mW on LO PWR and 5 mW on HI PWR.
