Iris disc AHG 9786
161.43 195.33 (only EU countries)
Limited stock
Enlarge image
161.43 195.33 (only EU countries)
In stock
SKU
C3003103
Limited stock
Shipping costs US start at $35.74

Secure shopping and payment

Fast and secure delivery

Specialists with product knowledge

Over 100 years experience

Retail store - pick up possible

Customers rate us 4.5/5 :)

Details

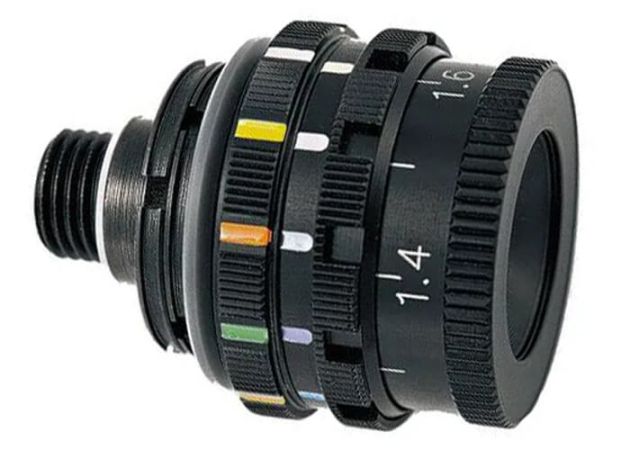

This high quality iris disc is made in Germany. A combination of ahg iris disc 9775 with 10 glass filters in the colours: light grey, grey, darkgrey, C 41 blue, C 41 UV, yellow, green, orange, brown, C 41 peach. This iris disc has 15 lamellar segments that form the circle that you look through. This iris disc is adjustable from 0.8-1.8 mm.

The continiuously adjustable iris disc enables optimum focus adjustment. By opening and closing the iris, the shooter can see the sharpness and focus of the target changing.

The best results are achieved in the range 1.0-2.0 mm. Ranges above 2.0 mm can be helpful if a shooter has his eye far away from the rear sight, for example when shooting in a standing position. Below 1.0 mm, the iris aperture may appear not perfectly round and unsharp. However, this is just a physical effect which occurs as a result of the small diameter. If you check the iris at its smallest setting with a magnifying glass, you will see that the aperture is perfectly round. These extreme small ranges are barely used.

More Information

Product Details

Product Details
SKUC3003103

Specifications

Specifications
BrandAHG
Product codeAHG9786-S Black
AHG9786-O Orange
Colour Filter10 colours
Setting Range (mm)0.8-1.8
Polarisation filterNo
DioptryNone
