Multispectral Rifle Scope DNT ThermNight Compact TNC335R

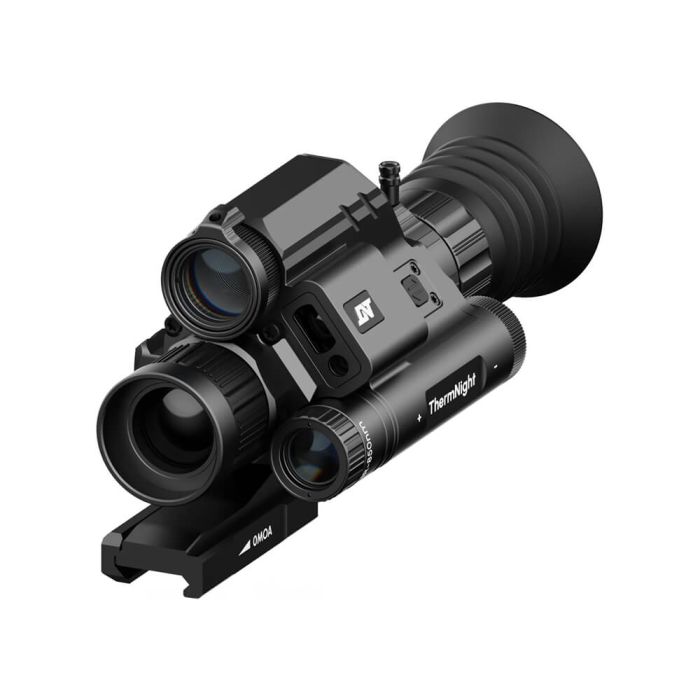

The DNT Optics ThermNight Compact TNC335R multispectral rifle scope seamlessly integrates digital day vision, thermal imaging and digital night vision, providing exceptional target detection and identification across various conditions.
DNT ThermNight Compact TNC335R :
• Dual imaging modes: effortlessly switch between thermal imaging and digital night vision, or utilize Picture-in-Picture mode to view both simultaneously for comprehensive situational awareness.
• High-resolution sensors: equipped with Sony Starvis 2 sensors and uncooled VOx microbolometers, the ThermNight series delivers excellent image clarity
• Integrated laser rangefinder and ballistic calculator: accurately measure distances up to 1100 yards (ca. 1006 m); the built-in ballistic calculator provides immediate reticle adjustments for enhanced precision.
• Advanced zoom capabilities: Thermal zoom ranges from 3x to 12x, while night vision zoom extends from 5x to 20x, allowing for flexible target engagement at various distances.
• Durable and compact design: constructed with an IP67 waterproof rating and recoil resistance up to .50 BMG, the ThermNight scopes are built to withstand harsh environments. Their compact size and lightweight design ensure ease of use in the field.
• Enhanced user experience: features such as longer eye relief (65 mm), a user-friendly zoom ring with a removable throw lever, and onboard video and audio recording capabilities enrich the overall user experience.
Digital day/night vision module:
• Resolution: 1920x1080 pixels
• Frame rate: 60 Hz
• Video resolution: 1800x1080 pixels
• Base magnification: 5x
• Digital zoom: 5x, 7.5x, 10x, 12.5x, 15x, 17.5x, 20x
• Eye relief: 65 mm
• Diopter adjustment: ±3D
• IR wavelength: 850/940 nm
• IR rating: class 3R (eye safe)
• Detection range: 400 m
Thermal module:
• Resolution: 384x288 pixels
• Image sensor: uncooled infrared image sensor
• Frame rate: 50 Hz
• Pixel size: 12x12 μm
• NETD: ≤18 mK @ 25 °C
• Objective lens focal length: 35 mm
• Base magnification: 2.5x
• Digital zoom: 2.5x, 3.75x, 5x, 6.25x, 7.5x, 8.75x, 10x
Please note: Shipment of digital optics with a reticle has a delay of 2 to 3 weeks due to an extensive customs procedure that needs completion before exportation.
Specifications
Brand | DNT Optics |
Product code | TNC335R |
Type | Rifle scope |
Sensor resolution (pixels) | 384x288, 1920x1080 |
Pixel pitch (µm) | 12 |
Thermal sensitivity (NEDT mK) | ≤18 |
Optical magnification | 2.5x & 5x |
Digital magnifcation | 2.5x, 3.75x, 5x, 6.25x, 7.5x, 8.75x, 10x, 12.5x, 15x, 17.5x, 20x |
Objective diameter (mm) | 35 |
Reticle | Yes |
Focus | Adjustable objective |
Display type | Micro-OLED |
Display resolution | 1920x1080 |
Frame rate (Hz) | 50 |
Stream function | Yes |
Battery type | 21700 |
Battery life | 6 hours |
IP-code | IP67 |
Size (mm) | 232x82x78 (lxwxh) |
Weight (gram) | 724 |
Mounts included | Yes - Weaver/Picatinny |
Extras | Battery, Eyepiece, Mount, USB cable |
