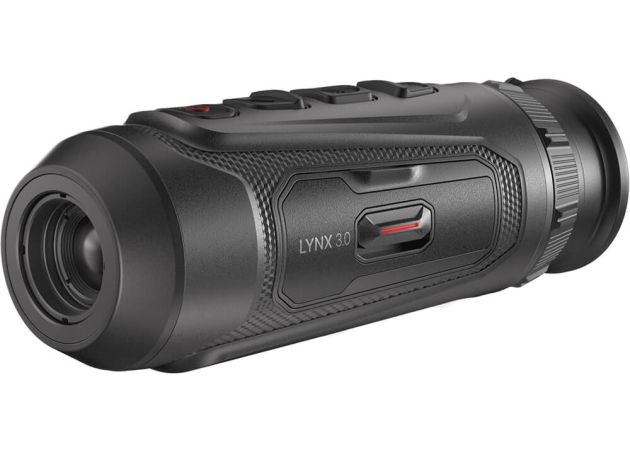

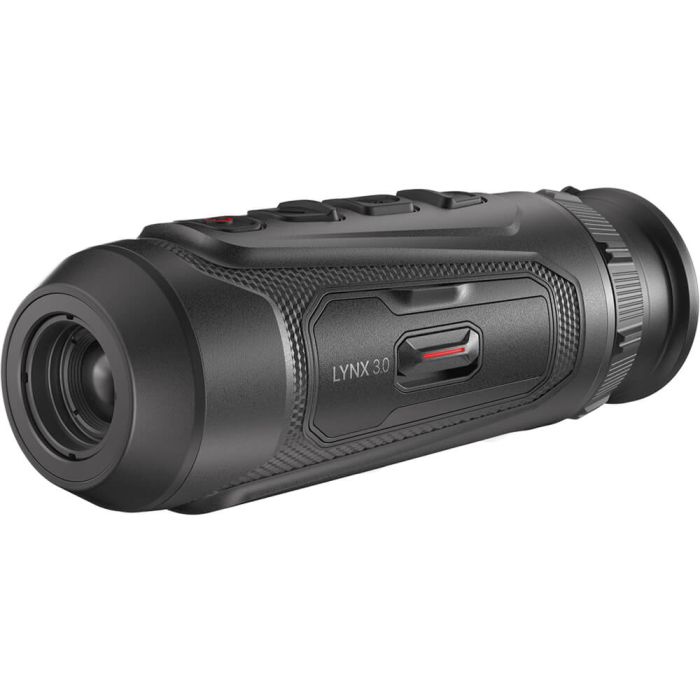

HikMicro Lynx 3.0 LE15 Thermal Imaging Camera

The HikMicro Lynx 3.0 LE15 is a compact thermal imaging camera equipped with advanced technology and high-end features for professional nature and wildlife observation. This handheld thermal imaging monocular easily fits into your pocket and is ideal for use at short distances and in dense woodland. With a detection range of 750 metres and a magnification of 2.2x to 17.6x, the Lynx 3.0 LE15 also performs exceptionally well at medium ranges and in open fields.

As part of the Lynx 3.0 series, this HikMicro thermal monocular combines high-end technology with practical functionality at a very reasonable price. Below, we explain why this thermal imager is an excellent choice for hunters, reserve managers, and anyone passionate about observing wildlife.

HikMicro Lynx 3.0 thermal imaging cameras

Compared to the Lynx 2.0 range, the HikMicro Lynx 3.0 thermal monoculars are lighter, more compact and deliver even higher image quality. Thermal imagers in the Lynx 3.0 series make use of clever AI-powered algorithms (Image Pro 3.0) to produce optimised, detail-rich images. You’ll notice this not only at minimal magnification, but also when using digital zoom. Even at maximum magnification, you’ll benefit from sharp, detailed images. Thanks to this advanced technology, spotting and tracking your target is made easy, even under challenging weather conditions.

Smooth imaging

The HikMicro Shutterless Image System (HSIS) ensures continuous, smooth imaging by eliminating image freezing. This allows you to rely on a constant, uninterrupted view without any disturbance caused by recalibration during observation.

User comfort

What further distinguishes the Lynx 3.0 thermal imaging camera is its AMOLED display, which delivers clear, highly detailed images. In addition, the image display can be set to two extra colour palettes (red monochrome and green monochrome), providing a total of six palettes to choose from. The Lynx 3.0 thermal monoculars also feature a faster start-up time (2 seconds) and softer, more responsive control buttons than the previous model, ensuring maximum operating comfort.

Generous internal memory

With an impressive 64 GB of built-in memory, you can store many video recordings (with or without audio) and photos. Thanks to Wi-Fi connectivity, captured footage can be viewed directly on a smartphone via the HikMicro Sight app and easily shared with others.

Technical features of the HikMicro Lynx 3.0 LE15 thermal imaging camera

The Lynx 3.0 LE15 by HikMicro features a 256x192p sensor with a 12 µm pixel pitch. With a thermal sensitivity (NETD) of less than 20 mK, even very small temperature differences are displayed with high precision. This thermal imaging camera has a field of view of 11.7°x8.8°, providing a clear and comprehensive image at both short and medium distances. Images are displayed in excellent clarity and detail on the 0.39-inch 1024x768p AMOLED display. A high refresh rate of 50Hz ensures smooth, fluid motion without lag.

The HikMicro Lynx 3.0 LE15 provides up to 8x digital zoom (2.2x to 17.6x). It also features a PIP (Picture-in-Picture) mode, which displays a magnified image within the main image for improved situational awareness. As a user of this monocular, you can choose from six different colour palettes for optimal image presentation:

• Black Hot
• White Hot
• Red Hot
• Fusion
• Red Monochrome
• Green Monochrome

Additional functionalities of the HikMicro Lynx 3.0 LE15 thermal imaging camera:

• Rangefinder
• Hot tracking (detects and marks the hottest spot)
• Video recording (with or without audio)
• Snapshots
• Wi-Fi connectivity for viewing sharing footages

HikMicro Lynx 3.0 LE15 thermal imaging camera features

• Compact and lightweight design
• Image Pro 3.0
• HikMicro Shutterless Image System (HSIS)
• Image sensor: VOx Uncooled Focal Plane Arrays
• High thermal sensitivity: NETD < 20 mK
• Detection range: 750 metres
• Lens diameter: 15 mm (f1.0)
• Field of view: 11.7°x8.8° (H x V) of 20.5m x 15.4m at 100 metres
• Magnification: 2.2x to 17.6x
• Display: 0.39-inch AMOLED
• Exit pupil: 6 mm
• Eye relief: 20 mm
• Dioptre adjustment: -5 to +3
• IP67: fully dustproof and waterproof up to 1 metre depth for max. 30 minutes
• Operating temperature: -30°C to 45°C (-22°F to 113°F)
• Fast start-up time: 2 seconds
• Soft, intuitive control buttons
• 6 colour palettes
• PIP mode
• 64 GB internal memory (eMMC)
• Compatible with HikMicro Sight app for viewing and sharing images
• Rechargeable and replaceable Li-ion 18650 battery
• USB-C charging port
