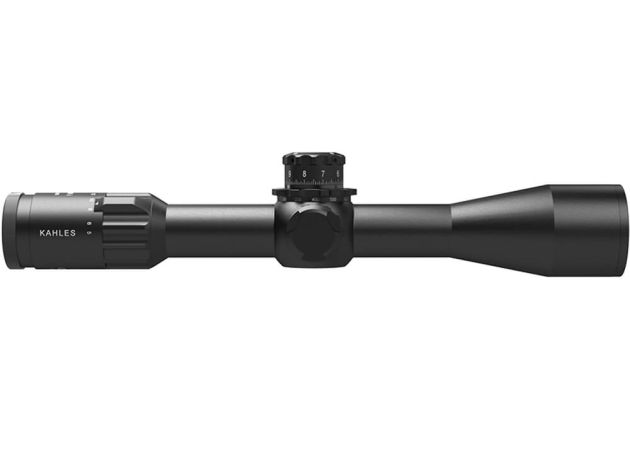

Kahles K540i DLR 5-40x56 Rifle Scope
The Kahles K540i DLR 5-40x56 rifle scope is specifically designed for dynamic long-range competitions (DLR), where speed is essential. This high-quality rifle scope features everything needed to make long-distance shooting significantly more comfortable, including an extremely wide field of view, 8x zoom with perfect optical performance, and a zero-stop that can be set at any desired distance.
Additionally, this Kahles rifle scope offers an exceptionally comfortable eyebox, even at the maximum 40x magnification. It also features an illuminated reticle in the first focal plane, meaning it scales with magnification. Parallax adjustment is possible from 20 metres to infinity and is integrated into the elevation turret. Thanks to the extra-large turret markings, settings can be quickly and easily read.
Kahles K540i DLR 5-40x56 features:
- 8x zoom (magnification from 5-40x)
- Zero-stop
- CCW windage turret on the left side
- Elevation turret with integrated parallax adjustment
- Parallax adjustment from 20 metres to infinity
- Illuminated reticle in the 1st focal plane
- Adjustment range vertical/horizontal 2.9 – 1.2 metres at 100 metres
- Adjustment per click: 0.1 MRAD
- Field of view: 10.2 – 1.3 metres at 100 metres
- Exit pupil: 1.4 – 7.7 mm
- Eye relief: 92 mm
- Dioptre compensation: -3 to +2 dpt
Specifications
| Brand | Kahles |
| Series | Kahles K540i |
| Product code | 10717 10715 |
| Status | New |
| Optical magnification | 5-40x |
| Objective diameter (mm) | 56 |
| Tube diameter (mm) | 36 |
| Reticle | MSR2/Ki, SKMR4+ |
| Reticle position | 1st focal plane |
| Focus | Side focus |
| Illumination | Yes |
| Mounting rail type | No rail |
| Eye relief (mm) | 92 |
| Field of view at 91.44 metres | 9.3 - 1.2 |
| Field of view at 100 metres | 10.2 - 1.3 |
| Turret adjustment | 0.1 Mrad |
| Windage position | Left |
| Turret rotation | CCW |
| Length (mm) | 408 |
| Weight (gram) | 1110 |
| Mounts included | No |
| Colour | Black |
| Extras | Lens cloth, Scope cover |
